Universal Input Tank Level Transducer For Underwater Monitoring SMP4603 Series

SMP4603 series universal input level transmitter

SMP4603 series of general-purpose input level transmitter uses high-performance diffusion of silicon pressure sensor as a measurement element, it measures the hydrostatic pressure which is proportional to the depth of the liquid and Convert to standard current or voltage by signal processing circuit. The product is suitable for petrochemical, metallurgical, power, pharmaceutical, water supply and drainage systems and other industries of various media level measurement.

Features

SS 316L , IP68

More than 2 times overpressure, when range is less than 5 meter, it can up to 5 times overpressure.

Anti-interference, anti-lightning design

High precision, high stability, high reliability.

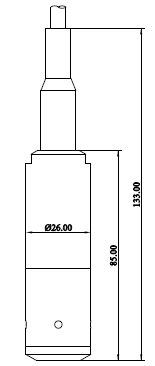

Outline construction:(Unit: mm)

Specification

Pressure parameter
Range	0 mH₂O～1 mH₂O…200 mH₂O
Overload	2 times FS,5 times FS when less than 5 mmH₂O
Electrical parameter
Output type	Current type		Voltage Type
Power supply	9~30V DC		12~30V DC
Output Signal	4mA～20mA DC(2 wire)		0/1V~5/10V DC (3 wire)
Load resistance	≤(U-9)/0.02Ω(2 wire)		≥10k (3 wire)
Strucural Parameter
Housing	SS
Sensor	SS 316L
Sealed-ring	Viton
Cable	∅7.5mm Polyethylene special cable
Protection class	IP68
Ambient parameter
Media applicability	Fluid which has no corrosion to Stainless steel 316L and viton
Compensation temperature	0℃～70℃
Medium Temperature	-20℃～75℃
Storage temperature	-40℃～125℃
Performance index
Accuracy	±0.25％FS(Standard)	±0.5％FS(Max.)
Zero temperature coefficient	±0.05％FS/℃(≤5 mH₂O)	±0.02％FS/℃(＞5 mH₂O)
Full temperature coefficient	±0.05％FS/℃(≤5 mH₂O)	±0.05％FS/℃(＞5 mH₂O)
Long term stability	±0.3%FS/year(Max.)

Electrical connection

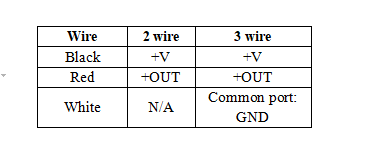

Definition of terminal

Order Code

SMP4603	series universal input level transmitter
	Range	Measurement range 0 mH2O～1 mH2O┅200 mH2O
	[0-X mH2O] L	X:measuring level,L: length of cable. Suggestions: L-X=(1～2)m
		Code		Signal output
		E		Output 4mA～20mA DC
		F		1V～5V DC
		J		0V～10V DC
		V		0V～10V DC
			Code	Material of construction
				Isolation diaphragm		Port	Housing
			22	SS 316L		SS	SS
			24	SS 316L		SS 316L	SS 316L
			25	HASTELLOY-C		SS	SS
			26	HASTELLOY-C		SS 316L	SS 316L
			27	Ta		SS	SS
			28	Ta		SS 316L	SS 316L
				Code	Functions
				Y	Terminal box
SMP4603 -［0～5mH2O］6 – E – 22 –Y the whole Spec.
