    Reliable Piezoresistive Waterproof Pressure Sensor High Anti - Overload Capacity

    Ask Lasest Price
    Brand Name : XI'AN SENSOR
    Model Number : SMP2000
    Supply Ability : 30000 Piece/Pieces per Month
    Price : $20.00
    • Product Details
    • Company Profile

    Reliable Piezoresistive Waterproof Pressure Sensor High Anti - Overload Capacity

    Product Description

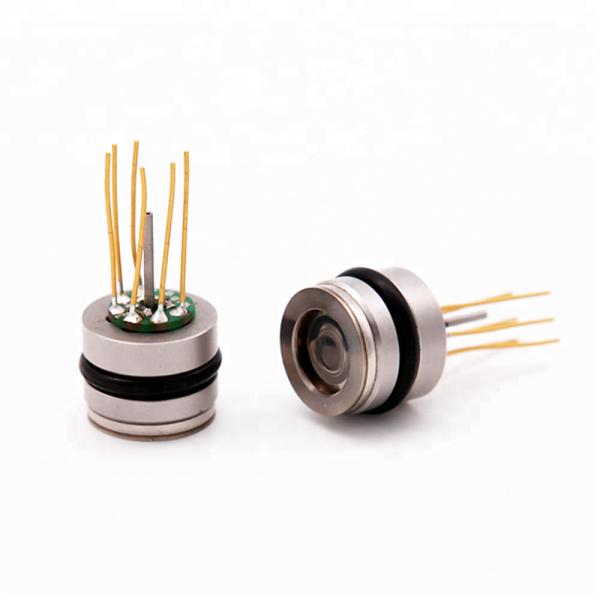

    SMP2000 series OEM Pressure Sensor with small volume and metal isolation diaphragm

    Introduction

    SMP 2000 series is an isolated oil - filled pressure sensor core with high performance, low cost and small volume. It uses MEMS Silicon chip. Manufacturing of each sensor is a process with strict aging, screening and testing to ensure the excellent quality and high reliability.

    This product has high anti-overload capacity and wide temperature range, it is widely used in automobiles, loading machinery, pumps, air conditioning and other occasions where have high requirements on small size and cost-effective.

    Feature

    • Range:-100kPa…0kPa~100kPa…70MPa
    • Small Volume:φ12.6mm, lower package cost
    • SS 316L
    • Isolated structure, for a variety of fluid medium pressure measurement.

    Application

    • Pressure measurement of automobile engine oil
    • Engineering machinery, water pumps, equipment
    • Industrial process control
    • Urban water supply system

    Outline Consttuction:(Unit: mm)

    Reliable Piezoresistive Waterproof Pressure Sensor High Anti - Overload Capacity Reliable Piezoresistive Waterproof Pressure Sensor High Anti - Overload Capacity

    <20MPa ≥20MP

    Model SMP2000-I Model SMP2000-II

    Specification

    Construction Condition

    Diaphragm material

    SS 316L

    Housing material

    SS 316L

    Pin Wire

    Kovar/100mm silicone rubber wire

    Back pressure tube

    SS 316L (gauge and negative pressure only)

    Seal ring

    nitrile rubber

    Electrical Condition

    Power supply

    ≤2.0mA DC

    Impedance input

    2.5kΩ~5kΩ

    Impedance output

    2.5kΩ~5kΩ

    Response

    (10%~90%):<1ms

    Insulation resistance

    100MΩ,100V DC

    Overpressure

    2 times FS

    Environmental Condition

    Media applicability

    fluid which has no corrosion on stainless steel and nitrile rubber

    Shock

    No change at 10gRMS,(20~2000)Hz

    Impact

    100g,11ms

    Position

    Deviate 90° from any direction, zero change≤±0.05%FS

    Basic Condition

    Environment temperature

    (25±1)℃

    Humidity

    (50%±10%)RH

    Atmospheric pressure

    (86~106) kPa

    Power supply

    (1.5±0.0015)mA DC

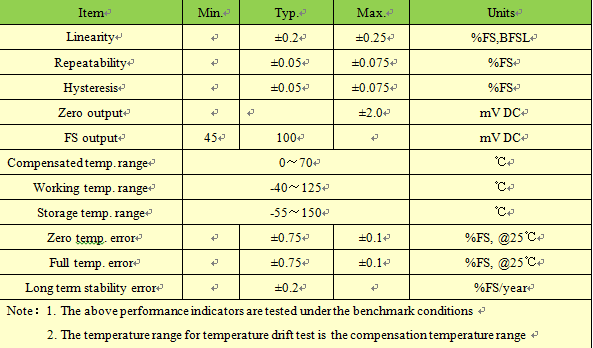

    Parameter

    Reliable Piezoresistive Waterproof Pressure Sensor High Anti - Overload Capacity

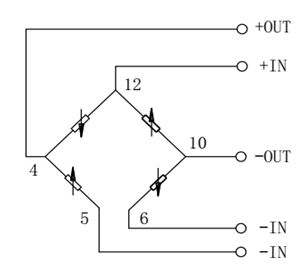

    Electrical connection

    Reliable Piezoresistive Waterproof Pressure Sensor High Anti - Overload Capacity

    Range≤7MPa Range>7MPa

    Reliable Piezoresistive Waterproof Pressure Sensor High Anti - Overload Capacity

    Pin

    Electric connection

    Wire color

    4

    +OUT

    Red

    10

    -OUT

    Blue

    11

    -IN

    Yellow

    12

    +IN

    Black

    Packaging & Shipping

    Company Information

    Company Profile of Xi’an Sensors Co., Ltd

    Xi’an Sensors Co., Ltd is a high-tech enterprise absorbed in providing customers with all kinds of pressure detection solution, design and produce pressure sensor. Company is located in the development zone of Xi’an city for high-and –new technology industry park, Zhangba sixth Road, production of pressure Sensors. Xi’an Sensors Co., Ltd has twenty three years’ experience in sensor development and production services. We manufacture high-quality products for various industrial customers with the innovative design, sophisticated equipment and high quality services.

    Our series of sensors have a wide range of applications including detection and automatic process control in transportation, energy, chemicals, shipbuilding, aviation, mechanical engineering, hydrology, medical and household appliances.




    FAQ

    Q1: Are you manufacturer or trading company?
    A: We are manufacturer, we have R&D team with more than 20 years of experience. We are located in NO 56, ZhangBa Road, High-tech Zone, Xi’an, China. Welcome to visit our company!

    Q2: Do you have any certification?
    A: Yes, we have RoHS, ISO 2015, we can offer certificates.

    Q3: Can we use our logo on the products?
    A: Yes. We can provide OEM products for you.

    Q4: What is the warranty of your products?
    A: Our service is free exchange within three months and one year maintenance guaranteed for non-man-made damages.

    Q5: How to place an order?
    A: We’d like to know the following information: application, medium, working temperature, testing range, output signal, Process connection, electrical connection, and other related parameters.

    Q6: What is your MOQ?
    A: We have no MOQ limits, 1 piece for test purpose at first is acceptable.


    Q7:Could I get samples?
    A: Yes, we have materials in stock to help you to get the samples as soon as we can
